D120G10A

£59.84

Price incl. VAT (20%) £9.97

In stock: 42 available

Save this product for later

Product Details

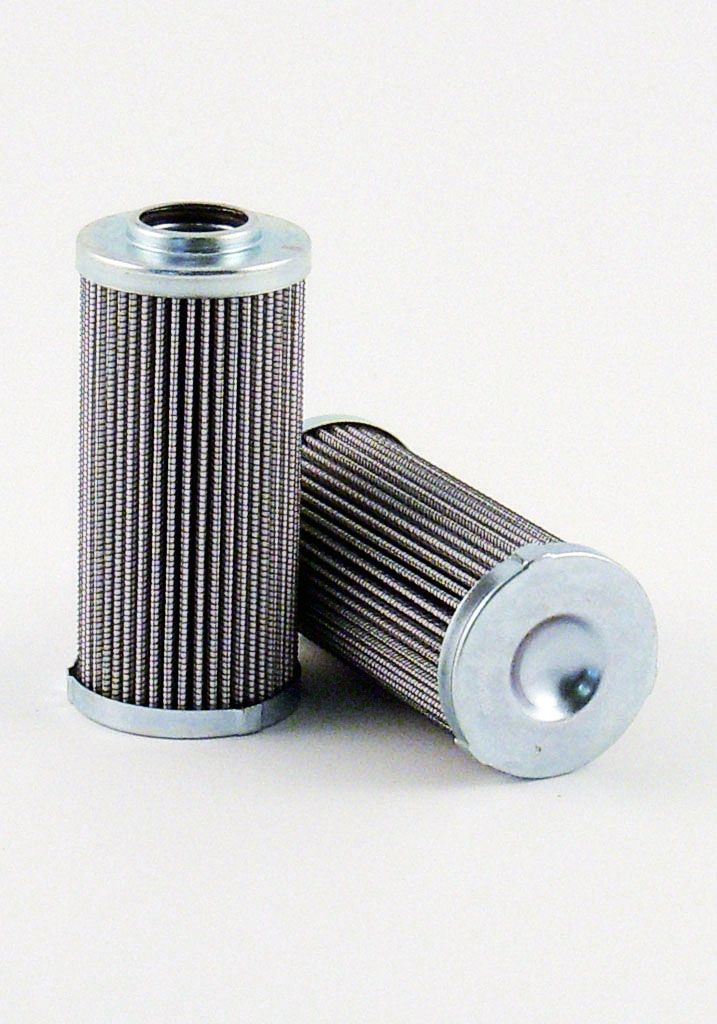

FILTREC D120G10A FILTER ELEMENT

OD (D1) (MM)	ID (D2) (MM)	LENGTH 1 (H1) (MM)	LENGTH 2 (H2) (MM)	THREAD SIZE	MEDIA/MICRON RATING	COLLAPSE PRESSURE (BAR)	WORKING PRESSURE (BAR)	BURST PRESSURE (BAR)	BYPASS FITTED	BYPASS SETTING (BAR)	FLOW DIRECTION	SEALS
50	24.5	116	0	0	G10	21	0	0	NO	0	OUT-IN	NBR

TECHNICAL INFORMATION

Pressure: Max working 420 bar (6000 psi) (acc. to NFPA T 3.10.5.1) Burst 1260 bar (18300 psi) (acc. to NFPA T 3.10.5.1)

Connection Ports: 1/2”÷1 1/2” BSP (other thread options on request) 3/4”÷1 1/2” SAE J518-6000

Materials: Head: cast iron Bowl: extruded steel Seal: Buna-N (FKM on request)

By-pass: No by-pass or 6 bar (90 psi) setting

Filter Media: Microglass fiber 4,5 – 7 – 12 – 18 - 27 μm(c) (acc. to ISO 16889) Cellulose 10 - 25 μm(c) (acc. to ISO 16889)

Differential collapse pressure: 21 bar (300 psi) or 210 bar (3000 psi) (acc. to ISO 2941) The Filtrec elements are tested also according to ISO 2942 and ISO 23181

Working temperature: -25°C +120°C (-13°F +248°F)

Manufacturers code: D120G10A

MANUFACTURER	STOCK CODE
AIRFIL	AFKOVL8510
BALDWIN	PT8895MPG
BEHRINGER	BE9800412A
BOSCH	9455251066
BUSSE	HE319
CASE	V2950528
DIAMOND	HD24010F
DOMANGE	CDHP20A10N
DONALDSON	472.52
DONALDSON	P169447
DONALDSON	P171753
DUPLOMATIC	FPMEF10S10N
EPPENSTEINER	16.9800H10LL115RP
EPPENSTEINER	16.9800RH10SLE000P
EPPENSTEINER	16.9800RH10XLE000P
FAI FILTRI	01444904
FAIREY ARLON	R980H0412A
FBN	HI204662
FILTER MART	F98004K12B
FILTERSOFT	H9804MDBL
FILTRATION GROUP	7788441
FILTRATION GROUP	891024SM10NBR
FINN FILTER	FC7101F010BS
FINN FILTER	FFKPVL1710110
FINN FILTER	FFKPVL1710110ABS
FLEETGUARD	HF30196
FLEETGUARD	HF7102
FLUID POWER EXPRESS	FA070142
FPC	FPL0498B10G
GOLDONI	06340422
HYCON	H98004010BN
HYDAC	02060946
HYDAC	11304D12BN
HY-PRO	HP80L412MB
HY-PRO	HP80L418MB
HY-PRO	HPQ98138
IHC	1265273H1
IKRON	HEK8630108ASFG010LCB
IKRON	HHC03162
INTERNORMEN	301134
INTERNORMEN	312775
INTERNORMEN	05.9800.10VG.10.E.P.4
LUBER FINER	LH4251
MASSEY FERGUSON	3656576M1
MP FILTRI	6013005
MP FILTRI	HP0502A10AN
MP FILTRI	PL1501A010ANP01
MP FILTRI	US1501A010ANP01
OMT	CHP423F10XN
PALL	HC9800FCS4H
PALL	HC9800FDS4H
PALL	HC9800FKS4H
PALL	HC9800FUS4H
PARKER	930190
PARKER	FC7101Q010BS
PARKER	G02749
PARKER	PR2749
PTI	P98015KGB
PUROLATOR	9800EAM122N1
QUALITY FILTRATION	QH9800A12B04
REXROTH	16.9800RH10XLE000M
REXROTH	169800RH10XLE000M
REXROTH	R928017014
SCHROEDER	SBF98004S7B
SCHROEDER	SBF98004Z10B
SEPARATION TECHNOLOGIES	2980L12B04
SEPARATION TECHNOLOGIES	2980L12B4
SEPARATION TECHNOLOGIES	3980GGHB04
SEPARATION TECHNOLOGIES	8980L12B04
SF-FILTER	62644
SF-FILTER	HY20804
SOFIMA HYDRAULICS	CCH301FD1
SOFIMA HYDRAULICS	CH301FD11
STAUFF	SP024E10B
STEP FILTERS	HID17238
TRIBOGUARD	9800412UM
UFI	EPB21NFC
VICKERS	V6011B1C10
VICKERS	V6011B1V10
WESTERN	E6010B1U10
ZINGA	S0410L
ZINGA	S0410LN

D120G10A
