D111G06A

£51.89

Price incl. VAT (20%) £8.65

In stock: 7 available

Save this product for later

Product Details

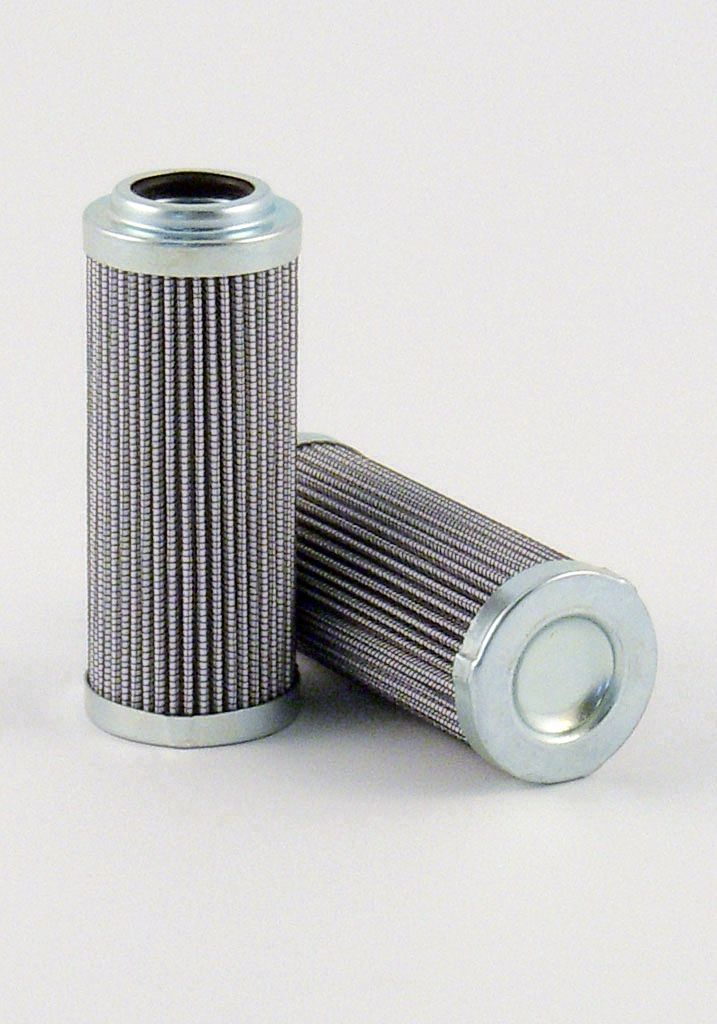

FILTREC D111G06A FILTER ELEMENT

OD (D1) (MM)	ID (D2) (MM)	LENGTH 1 (H1) (MM)	LENGTH 2 (H2) (MM)	THREAD SIZE	MEDIA/MICRON RATING	COLLAPSE PRESSURE (BAR)	WORKING PRESSURE (BAR)	BURST PRESSURE (BAR)	BYPASS FITTED	BYPASS SETTING (BAR)	FLOW DIRECTION	SEALS
45	25.5	113	0	0	G06	21	0	0	NO	0	OUT-IN	NBR

TECHNICAL INFORMATION

Pressure: Max working 420 bar (6000 psi) (acc. to NFPA T 3.10.5.1) Burst 1260 bar (18300 psi) (acc. to NFPA T 3.10.5.1)

Connection Ports: 1/2”÷1 1/2” BSP (other thread options on request) 3/4”÷1 1/2” SAE J518-6000

Materials: Head: cast iron Bowl: extruded steel Seal: Buna-N (FKM on request)

By-pass: No by-pass or 6 bar (90 psi) setting

Filter Media: Microglass fiber 4,5 – 7 – 12 – 18 - 27 μm(c) (acc. to ISO 16889) Cellulose 10 - 25 μm(c) (acc. to ISO 16889)

Differential collapse pressure: 21 bar (300 psi) or 210 bar (3000 psi) (acc. to ISO 2941) The Filtrec elements are tested also according to ISO 2942 and ISO 23181

Working temperature: -25°C +120°C (-13°F +248°F)

Manufacturers code: D111G06A

MANUFACTURER	STOCK CODE
AIRFIL	AFKOVL916
BALDWIN	H9042
BEHRINGER	BE9020406A
CATERPILLAR	3I0649
DIAMOND	HD22206F
DONALDSON	402.01
DONALDSON	CM250.01
DONALDSON	P165041
EPPENSTEINER	16.9020H6LL115RP
EPPENSTEINER	16.9020RH6SLE000P
EPPENSTEINER	16.9020RH6XLE000P
FAI FILTRI	01442304
FAIREY ARLON	R920H0406A
FILTER MART	F90204K6B
FILTERSOFT	H9204MCBL
FILTRATION GROUP	9313218
FINN FILTER	FC7121F005BS
FINN FILTER	FFKPVL171215ABS
FLEETGUARD	HF30028
FLEETGUARD	HF7041
FLUID POWER EXPRESS	FA070129
FRAM	C7259
HYCON	H80204005BN
HYCON	H90204005BN
HYDAC	02060903
HYDAC	10704D06BN
HY-PRO	HP20L46MB
INTERNORMEN	301102
INTERNORMEN	05.9020.6VG.10.E.P.4
LUBER FINER	LH4234
MP FILTRI	6007003
MP FILTRI	PL0701A006ANP01
MP FILTRI	US0701A006ANP01
NELSON WINSLOW	87828N
OMT	CHP282F06XN
OMT	CHP282NXN
PALL	HC9020FCN4H
PALL	HC9020FDN4H
PALL	HC9020FKN4H
PALL	HC9020FUN4H
PARKER	G02745
PARKER	G04041
PARKER	G04684Q
PARKER	PR2745
PTI	FK010HGB
PUROLATOR	1400EAM062N1
QUALITY FILTRATION	QH9020A06B04
REXROTH	13.14P1H6XLD000M
REXROTH	1314P1H6XLD000M
REXROTH	16.9020RH6XLE000M
REXROTH	169020RH6XLE000M
REXROTH	R928016858
REXROTH	R928028608
SACMI	056732042
SCHROEDER	4YZ5
SCHROEDER	SBF90204S3B
SCHROEDER	SBF90204Z5B
SEPARATION TECHNOLOGIES	2902L06B04
SEPARATION TECHNOLOGIES	2902L06B4
SEPARATION TECHNOLOGIES	3902GGEB04
SEPARATION TECHNOLOGIES	8902L06B04
SF-FILTER	HY18290
SOFIMA HYDRAULICS	CCH152FC1
SOFIMA HYDRAULICS	CH152FC11
STAUFF	SP010E05B
STEP FILTERS	HID17321
TRIBOGUARD	902046UM
UFI	EPB12NFB
VICKERS	V3041B1C05
VICKERS	V3042B1C05
VICKERS	V3042B1V05
ZINGA	G0406L
ZINGA	G0406LN

D111G06A
