Product Details

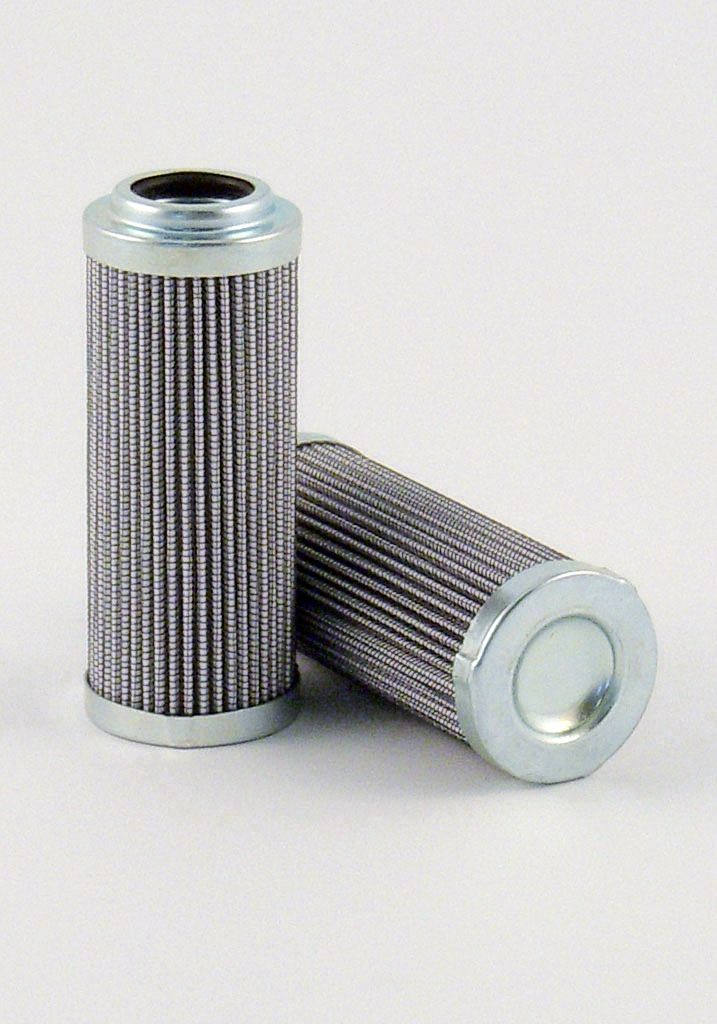

FILTREC D110G03A FILTER ELEMENT

OD (D1) (MM)	ID (D2) (MM)	LENGTH 1 (H1) (MM)	LENGTH 2 (H2) (MM)	THREAD SIZE	MEDIA/MICRON RATING	COLLAPSE PRESSURE (BAR)	WORKING PRESSURE (BAR)	BURST PRESSURE (BAR)	BYPASS FITTED	BYPASS SETTING (BAR)	FLOW DIRECTION	SEALS
45	25.5	86	0	0	G03	21	0	0	NO	0	OUT-IN	NBR

TECHNICAL INFORMATION

Pressure: Max working 420 bar (6000 psi) (acc. to NFPA T 3.10.5.1) Burst 1260 bar (18300 psi) (acc. to NFPA T 3.10.5.1)

Connection Ports: 1/2”÷1 1/2” BSP (other thread options on request) 3/4”÷1 1/2” SAE J518-6000

Materials: Head: cast iron Bowl: extruded steel Seal: Buna-N (FKM on request)

By-pass: No by-pass or 6 bar (90 psi) setting

Filter Media: Microglass fiber 4,5 – 7 – 12 – 18 - 27 μm(c) (acc. to ISO 16889) Cellulose 10 - 25 μm(c) (acc. to ISO 16889)

Differential collapse pressure: 21 bar (300 psi) or 210 bar (3000 psi) (acc. to ISO 2941) The Filtrec elements are tested also according to ISO 2942 and ISO 23181

Working temperature: -25°C +120°C (-13°F +248°F)

Manufacturers code: D110G03A

MANUFACTURER	STOCK CODE
BOSCH	9455251050
FAI FILTRI	03741703
HY-PRO	HP8NL43MB
IKRON	HEK8520080ASFG006LCB
IKRON	HHC01900
IKRON	HHC01901
MP FILTRI	HP0651A03NA
MP FILTRI	HP651A03NA
OMT	CHP281F03XN
OMT	CHP281FXN
PUROLATOR	1400EAM032N3
SCODA	SPHP65A0320
SF-FILTER	HY18275
SOFIMA HYDRAULICS	CCH151FT1
SOFIMA HYDRAULICS	CH151FT11
UFI	EPB11NFA
