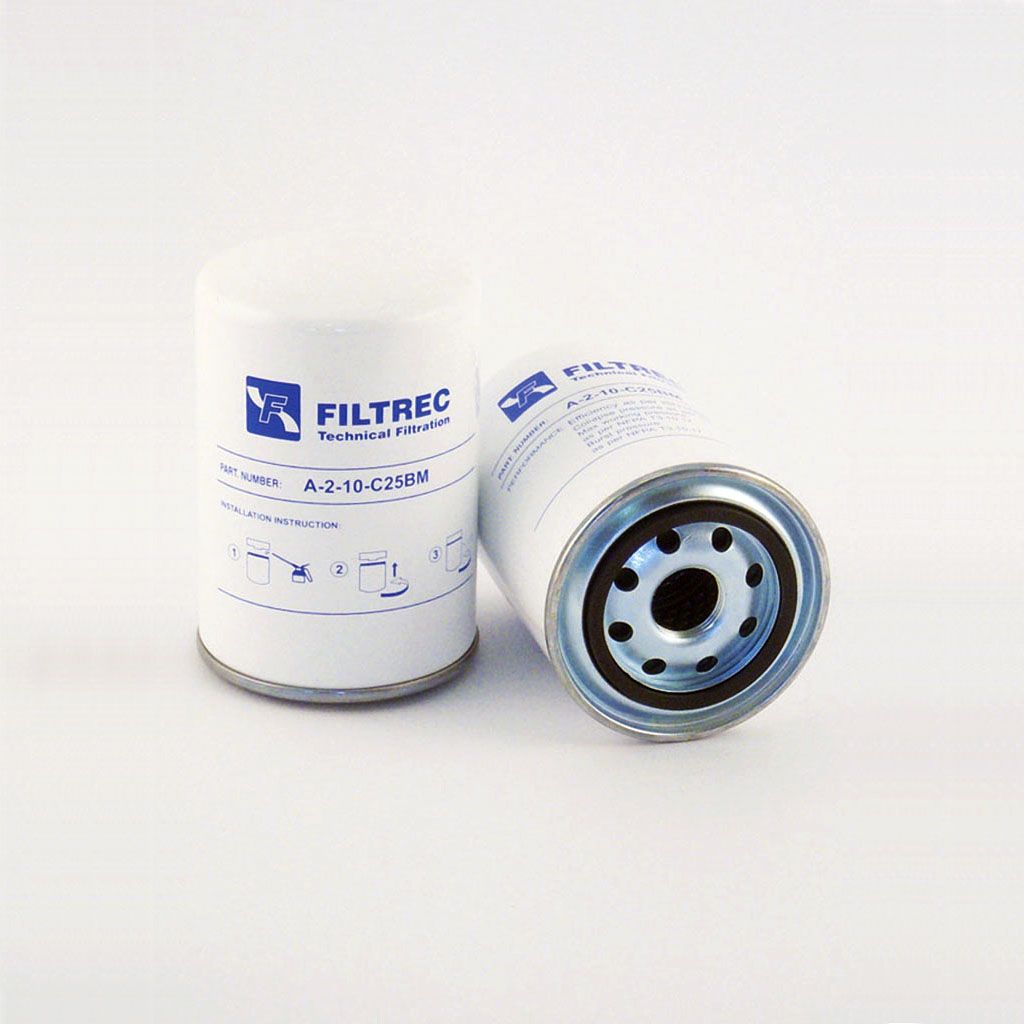

Tank top return line spin-on filter assemblies. Max flow Rate: 150 l/min (40gpm) Max working pressure: As per NFPA T 3.10.17: 12 Bar (175 psi) Test pressure: As per NFPA T 3.10.17: 15 Bar (217.5 psi) Burst pressure: As per NFPA T 3.10.17: 20 Bar (290 psi) Connection Ports: BSP Indicator: visual and electrical Working temperature: -25C + 100C Materials: Head: aluminium Housing: carbon steel Seal Buna-N Fluids compatibility: ISO 2943: Filter assembly compatible with mineral oils and same synthetic or vegetable oils. With other fluid applications please contact filtrec S.p.A.
Filter Element: Filter media: Microglass fiber 3,6,10,25,um Cellulose 10,25 um Wire mesh 60, 125um Collapse pressure: As per ISO 2941: 4 Bar (58 psi) By-pass setting: Return line: 1,7 Bar (24.6 psi)
THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITIY OF 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERING TO THE TECHNICAL INFORMATION.
