In line low-pressure spin-on filter assemblies, suction and return lines. Max flow rate: 300 l/min Max working pressur: As per NFPA T 3.10.17: 12 Bar (175 psi) Test pressure: As per NFPA T 3.10.17: 15 Bar (217.5 psi) Burst Pressure: As per NFPA T 3.10.17: 20 Bar (290 psi) Connection ports: BSP By-pass setting: Suction line 0,25 Bar (3.6 psi) return line 1,7 Bar (24.6 psi) Indicator: Visual and electrical Working temperature: -25C + 120C Materials: Head: aluminium Housing: carbon steel Seal: Buna-N
Fluids compatibility: ISO 2943: Filter assembly compatible with mineral oils and some synthetic or vegetable oils.

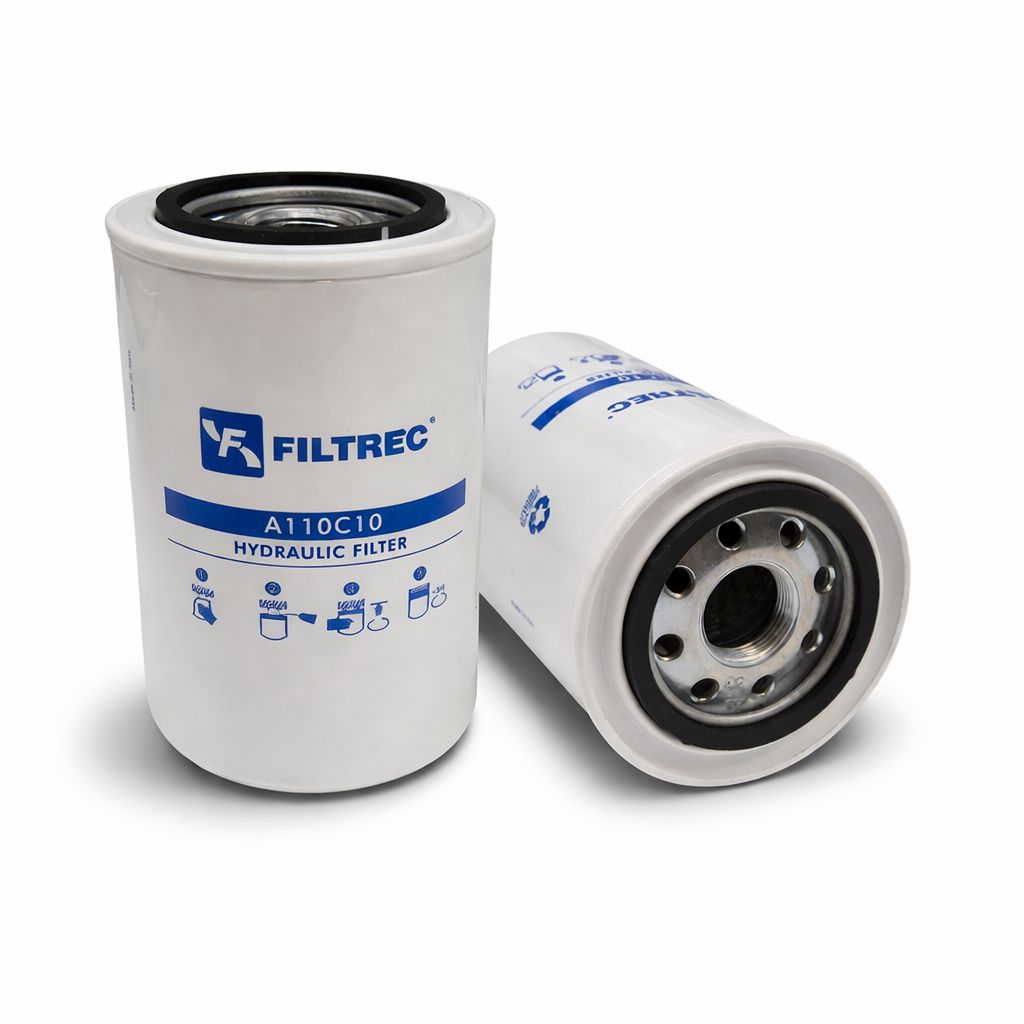

Filter Element
Filter medi: Microglass fiber 3,6,10,25 um Cellulose 10, 25 um Wire mesh 60, 125 um Collapse pressure: as per ISO 2941: 4 Bar (58 psi)
THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITY OF 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERING TO THE TECHNICAL INFORMATION.
