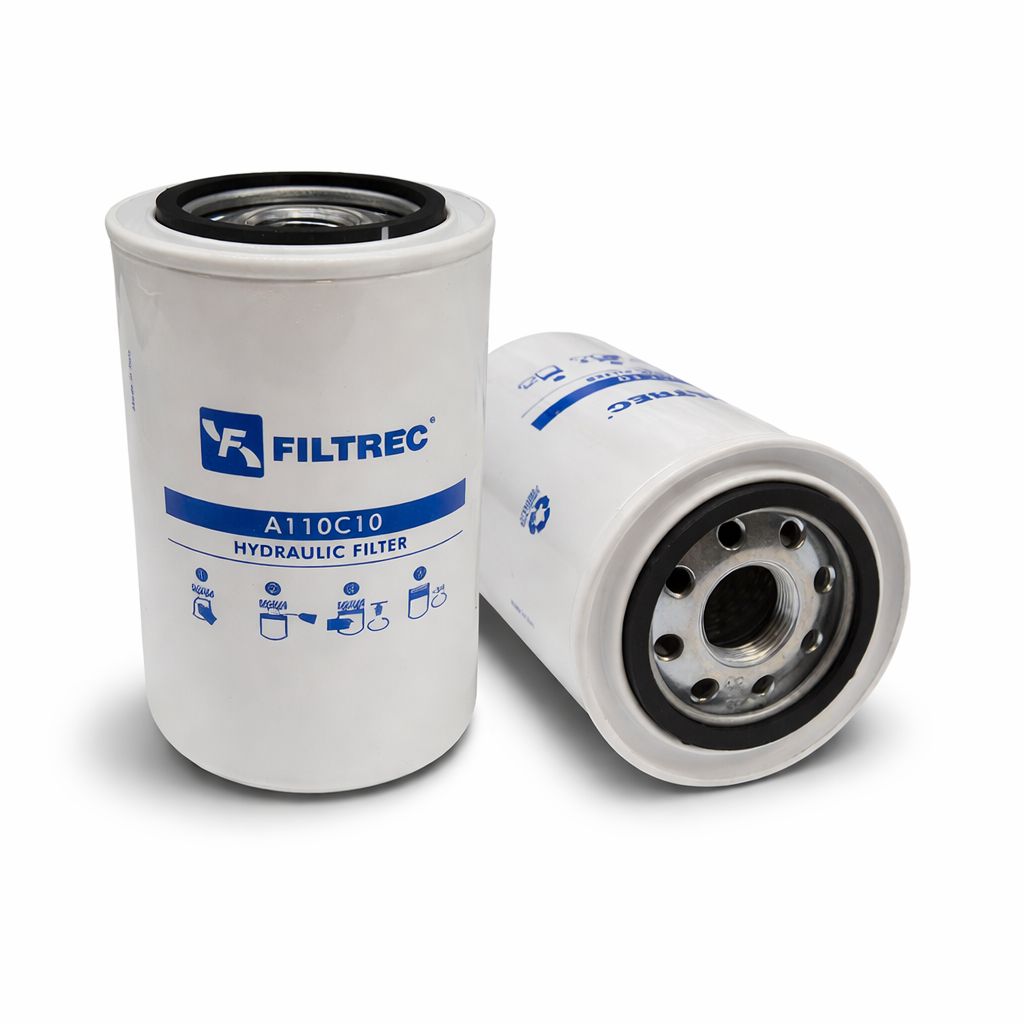

A110C10-PLAIN

A110C10-PLAIN Spin-On Cartridge

FA-1 HYDRAULIC RETURN LINE SPIN-ON FILTERS

Technical Information

In line low-pressure spin-on filter assemblies, suction and return lines.
Max flow rate: 300 l/min (79 gpm)
Max working pressure: As per NFPA T 3.10.17: 12 Bar (175 psi)
Test pressure: As per NFPA T 3.10.17: 15 Bar (217.5 psi)
Burst pressure: As per NFPA T 3.10.17: 20 Bar (290 psi)
Connection Ports: BSP
By-pass setting: suction line 0,25 Bar (3.6 psi) return line 1,7 Bar (24.6 psi)
Indicator: Visual and electrical
Working temperature: -25C + 120C
Materials:
Head: aluminium
Housing: carbon steel
Seal: Buna-N
Fluids compatibility: ISO 2943: Filter assembly compatible with mineral oils and some synthetic or vegetable oils. With other fluid applications please contact Filtrec S.p.A

Filter Element
Filter media: Microglass fiber 3,6,10,25 um
Cellulose: 10,25 um
Wire mesh: 60, 125 um
Collapse pressure: as per ISO 2941: 4 Bar (58 psi)

THE GIVEN FLOW RATE VALUES REFER TO APPLICATIONS WITH MINERAL OIL HAVING VISCOSITY OF 30 CST AT WORKING TEMPERATURE. FOR APPLICATIONS WITH DIFFERENT FLUID OR WORKING CONDITIONS, A CORRECTIVE FACTOR MUST BE APPLIED BY REFERING TO THE TECHNICAL INFORMATION.
